HydroVolve EvoLOG
Drill-String Dynamics Data Logger

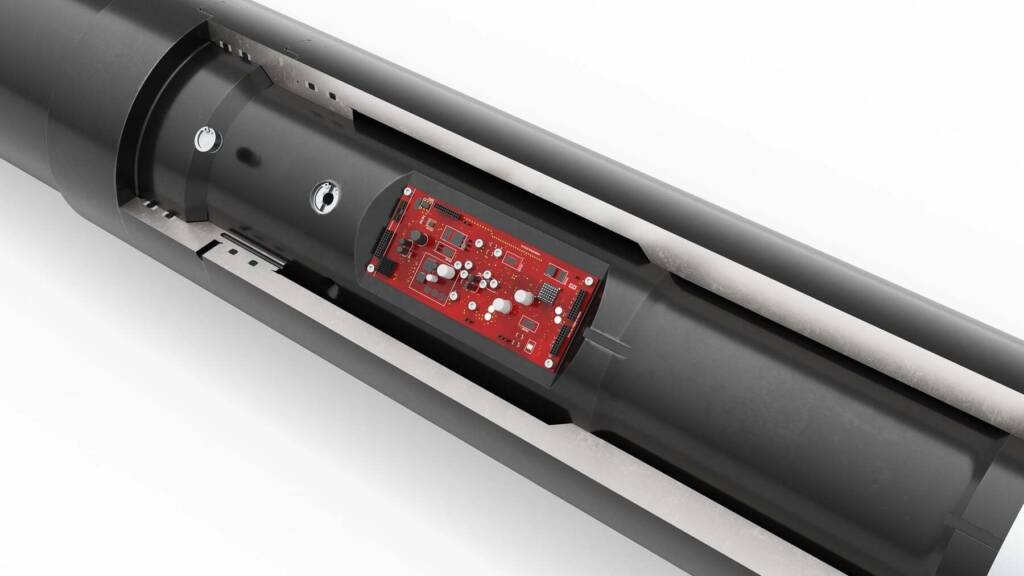

EvoLOG is a drillstring dynamics logging tool which can be deployed in any drilling operation to record the behaviour of the drillstring over a period of time.
EvoLOG continuously logs parameters of Tensile Force, Compressive Force, Torsional Force, Multi-Axis Acceleration, Pressure and Temperature in both bore and annulus at a sample rate of 4000Hz for 160hours. Time delays, and programable intervals and triggering values can be utilised to maximise the effectiveness of the recorded data and to preserve battery life.
EvoLOG is programmed through the windows Graphical User Interface (GUI) with the necessary triggering and data capture parameters for optimal drillstring dynamics recording set prior to deployment. It is recommended for use in fishing operations, casing pulling campaigns, liner and casing deployment, and in slot recovery and side-track operations.
Technical Details

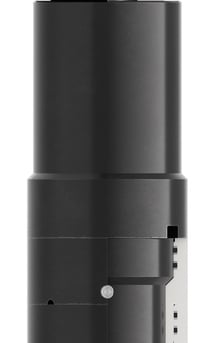

Sensor Array Module
EvoLOG is fitted with a large array of sensors to measure the dynamic performance of the drillstring in terms of:
- Axial compression
- Axial tension
- Tri-axial acceleration
- Torsion
- Bore pressure
- Bore temperature
- Annulus pressure
- Annulus temperature

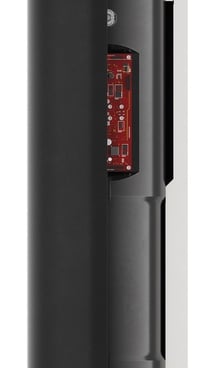

CPU Module
The CPU provides the system control and device memory storage to ensure:
- High data capture rate
- Long battery life
- Battery saver mode
- Data saver mode
- XL memory
- High ‘G’ resistance
- Simple data download
- Intuitive user interface
Power Module
The power module contains advanced high-temperature long life batteries. The batteries are field-replaceable.
